230V LED light dimmer Read more.

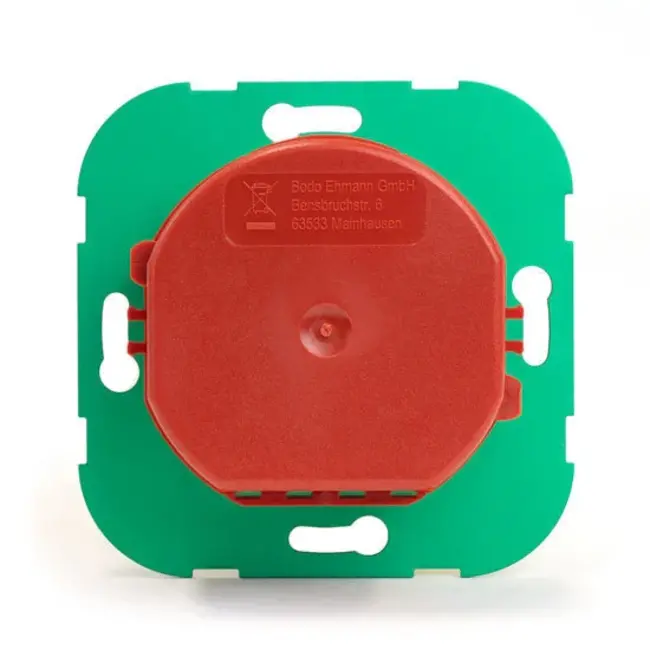

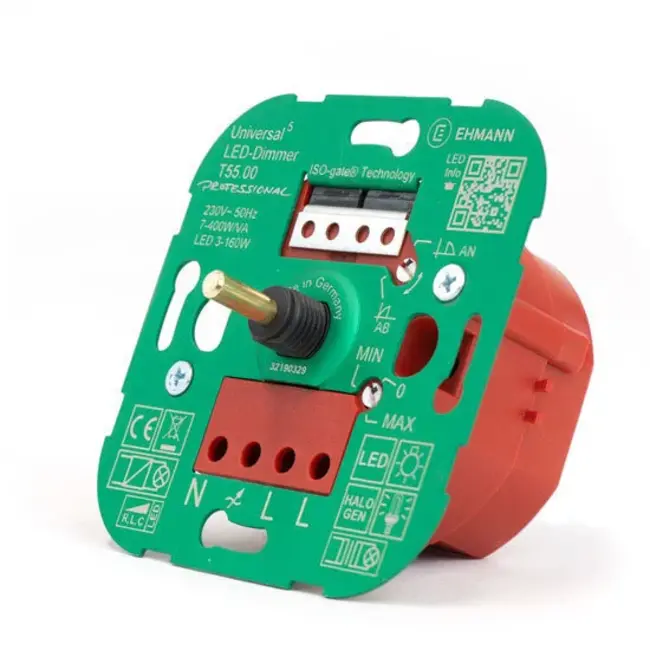

LED built-in dimmer Multi AC 200V-250 Volts, phase cut-off and phase cut (PWM, TRIAC), 200 watts (max. Load with LED lights up to 200W). Including cover plate of (cream) white color. This rotary dimmer can be used in conjunction with our 230V dimmable LED Lamps. Protected against overvoltage and short circuit. The minimum load is according to the manufacturer 1W.
This dimmer comes with a white dial and cover plate so that it can be neatly integrated into the wall mounting box. The assembly is very simple, screw the cover plate to the built-in box with the supplied screws.
Pay attention! This dimmer can not be installed in and switching and / or hotel circuit. In addition, a zero wire must be connected.
This LED dimmer operates with 99% of the (LED) lamps. Because the type of dimming can be converted with a button, you always have the right dimmer! This dimmer also works with halogen and incandescent bulbs.
The dimmer has three positions:
Phase cutout (trailing edge) is used with all dimmable 230 volt LED lamps, mounting spots, downlights, etc. Please note that with this type of LED lamp, no 12 or 24 volts of transformer is used! Also because those lamps only i.c.m. A dimmable LED transformer can be dimmed.
Phase cutting (leading edge / TRIAC) is used with most LED lights with external 12 or 24 volt transformer / driver, such as 12 Volt spots.
Intermediate 1 and 2: The dimmer then determines whether phase cutting or phase cutting is to be used, thus ensuring proper dimming.
Dimrange for different types of lamps:
- LED lamps: 1 - 200 watts
- Light bulbs 230 Volt: 25 - 400 watts
- Halogen lamps 230 Volt: 25 - 400 watts
- Electronic halogen transformer 12 Volt: 25 - 400 watts
- Conventional transformer: 25 - 400 watts
With this pressure / turn dimmer, the cover plates are supplied as standard, but this dimmer is also suitable for the well-known universal A-brand cover plates as we are used to Dutch. Please note that the hole on the back of the pushbutton, where the dimmer's pen should be 4mm.
