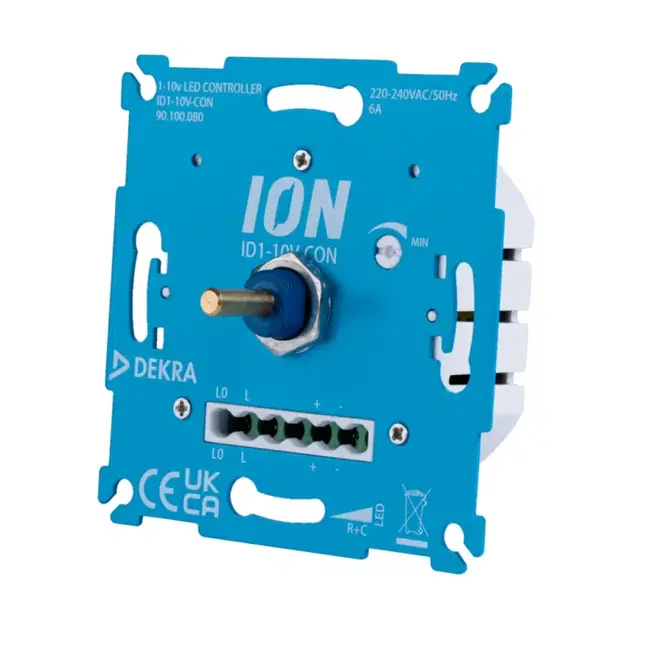

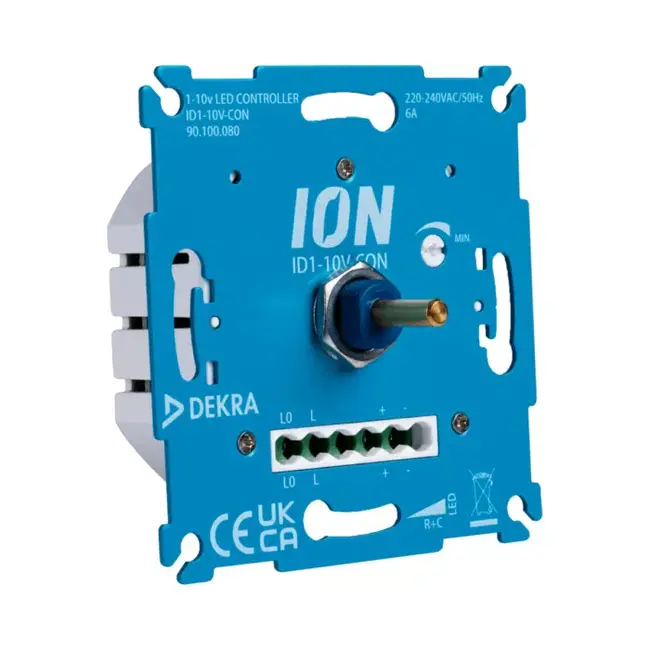

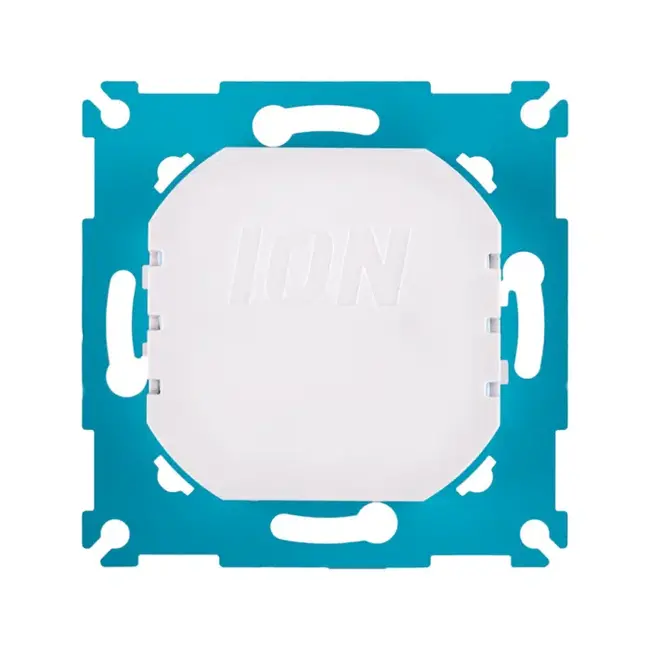

LED Controller 1-10 Volt

The LED Controller is ideal for dimming LED Drivers with a high wattage up to 1380W. In addition, the universal controller is reliable due to its protection and is easy to install.

This LED Dimmer is known for its ability to dim all dimmable LED lighting. The technique used is phase cut, which is indicated by 'RC' at the bottom of the dimmer. LED lamps in combination with an inductive load (L) do not work (and are also prohibited by law). Contains a memory function: the LED Dimmer remembers the last used setting of your lighting.

This dimmer can be installed with the following cover plate(s):

ION INDUSTRIES ION Dimmer cover plate matt anthracite

Technical details

• Voltage: 230V +/- 10%
• Minimum load: 0.3 VA
• Maximum load: 6 VA
• Consumption without load: <=0.3 W
• Enclosure class: IP20
• Dimensions: 71mm x 71mm x 23mm
• Short circuit protection: Yes, automatic
• Overload protection: Yes, automatic
• Thermal protection: Yes, automatic
• Adjustable minimum and maximum dimming level

When you purchase this item, you will receive:

• 1x ION 1-10V LED Dimmer
• User manual

NOTE: This dimmer is supplied without a rotary knob and cover.
